MP7 Takedown Guide (Major 56k Killer, over 50 pics)
« on: June 25, 2007, 04:45:51 PM »

Disclaimer: This is not my guide. I have taken this off of Arnies for all you people without accounts there. Any and all ownership of this guide and its pictures belongs to Arnies and staticzero, the guy who wrote this. I shall repeat, I DID NOT WRITE THIS!!!

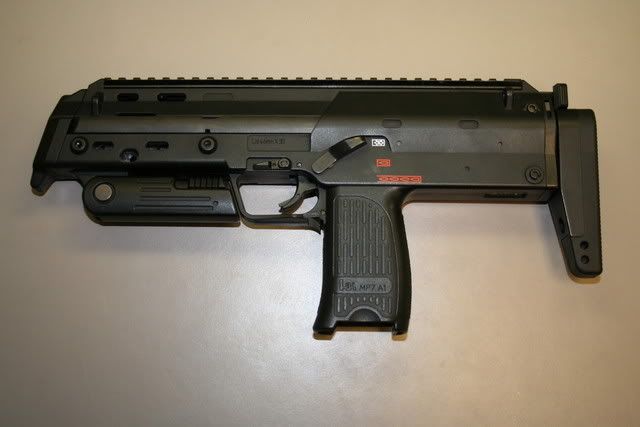

We're going to turn this...

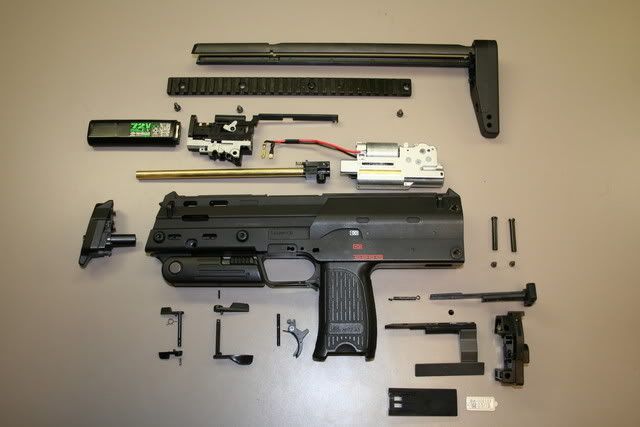

...into this. Note that it's not necessary to remove the flash hider and side rails for this, mine were simply removed already. You'll need to remove the sights if they're in the way of the top rail screws.

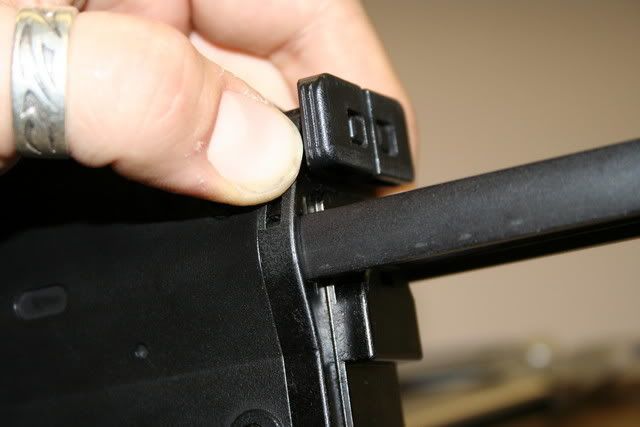

Start by removing the stock. Pull both catches up and slide the stock out and free. Take the front set off too

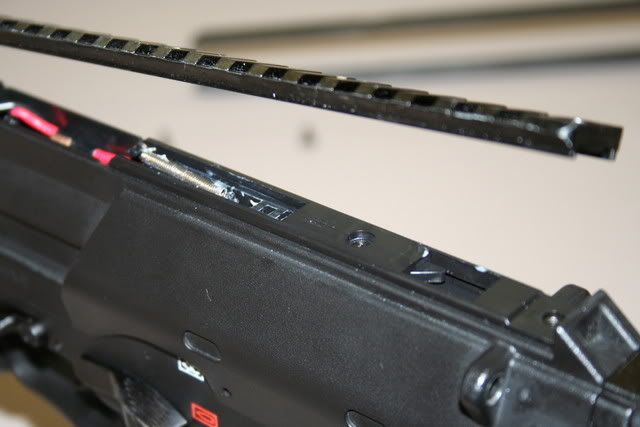

Next take the top rail off. The screw above the selector is a dummy, don't remove it. The longest screw goes in front; keep this in mind when you reinstall the rail later.

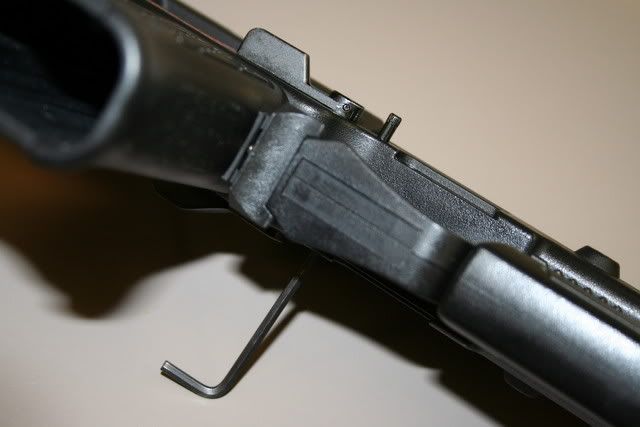

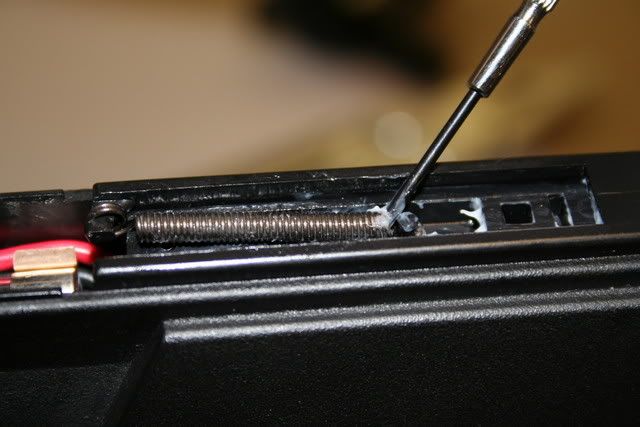

Pop the charging handle return spring off using a small tool and set it aside...

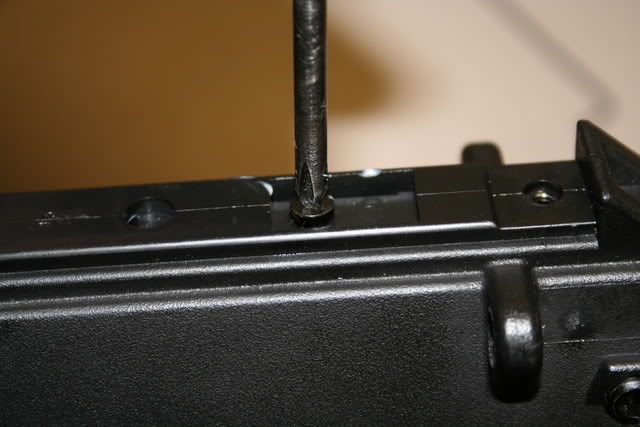

Remove the charging handle retaining screw next. You may also remove the charging handle at this time

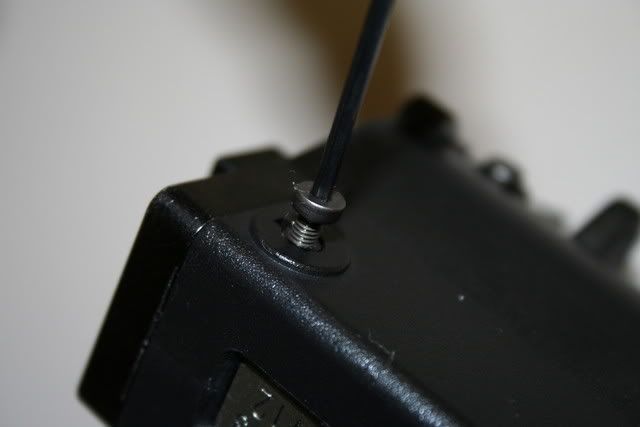

Now remove the body pin screws

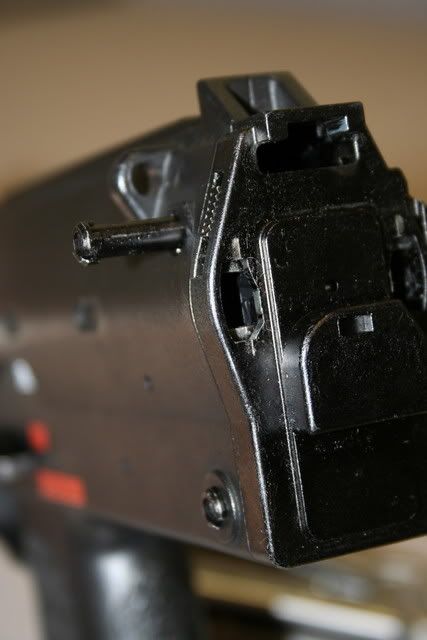

And then push out the body pins

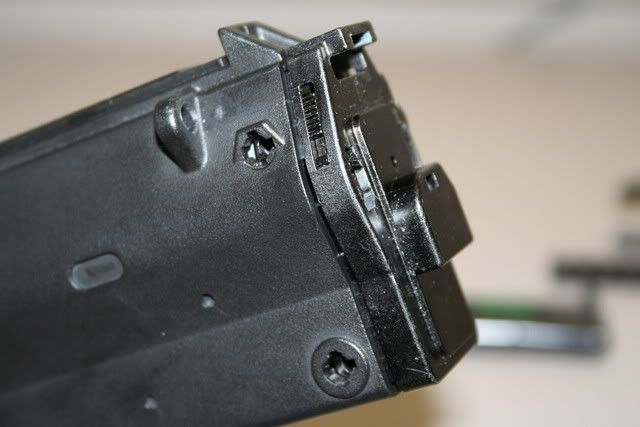

The end cap will be free now. Remove it and set it aside

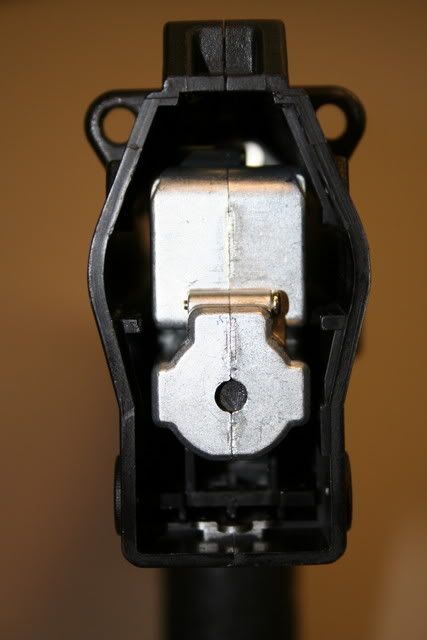

Here's the inside view at this point. You can see the back of the gearbox

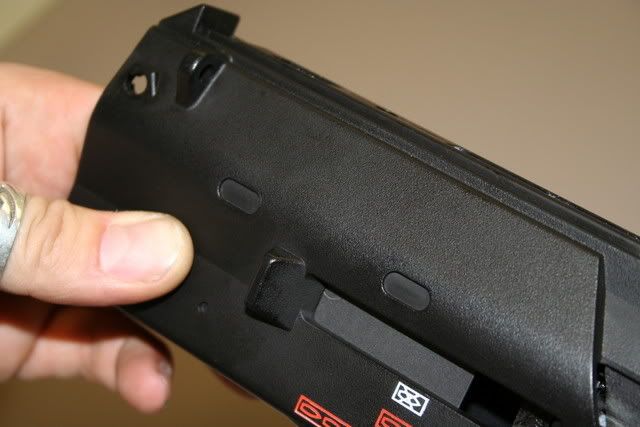

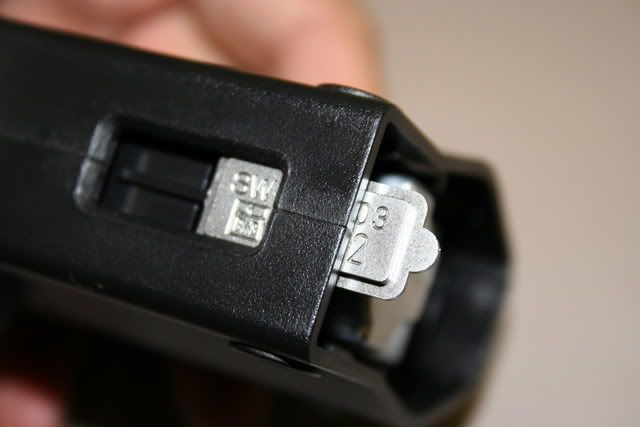

The next step is to remove the serial number plate. It just slides out

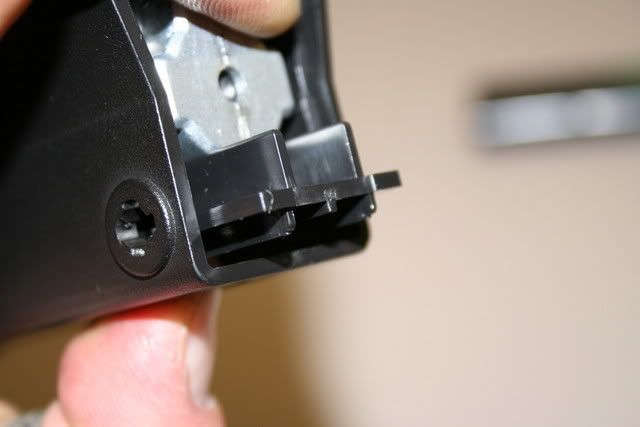

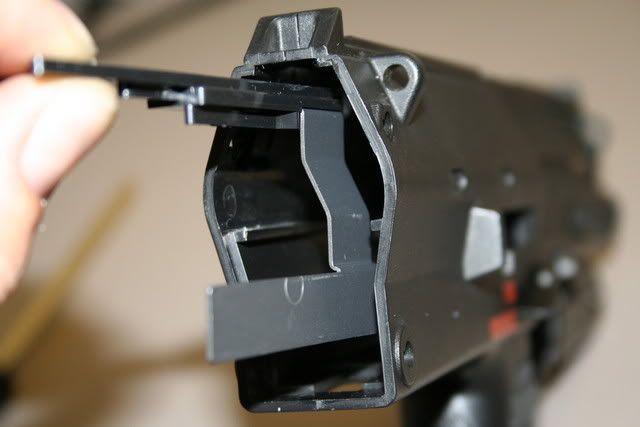

You may then remove the gearbox retainer shim. The gearbox will slip down a bit after this is removed

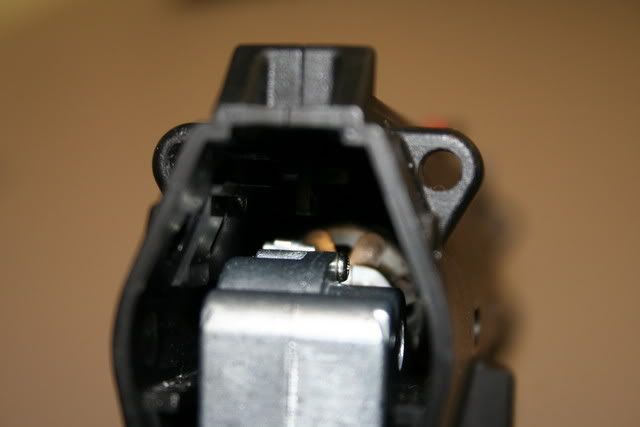

Look above the gearbox and note the semi-auto cutoff lever actuator arm and its connection to the semi-auto cutoff lever. You'll need to get this back correctly when reassembling the gun or you will not be able to switch to auto

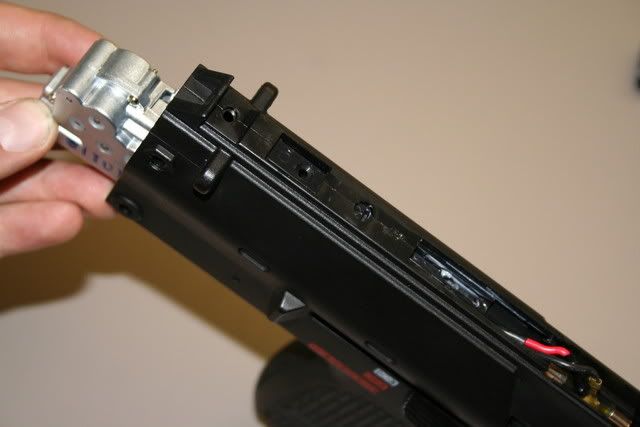

Now pull the gearbox out of the back. You'll need to disconnect the wires first of course; they need to be fed through the slot in the top as you remove the gearbox

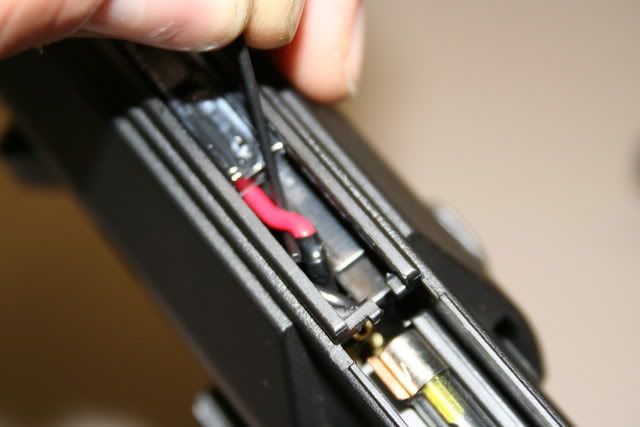

When putting the gearbox back in you'll need to use a small tool to pull the wires back up

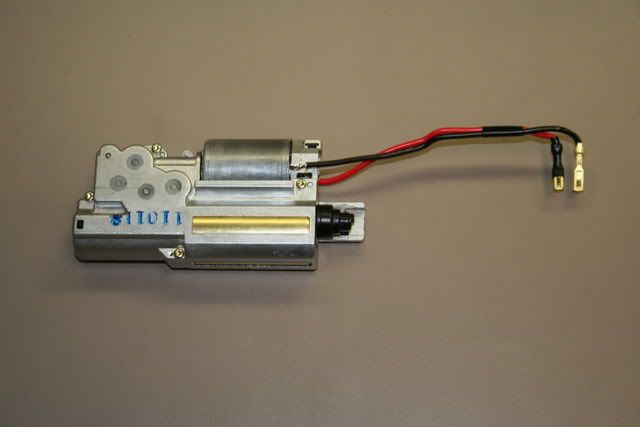

Here's the gearbox. It really is very small

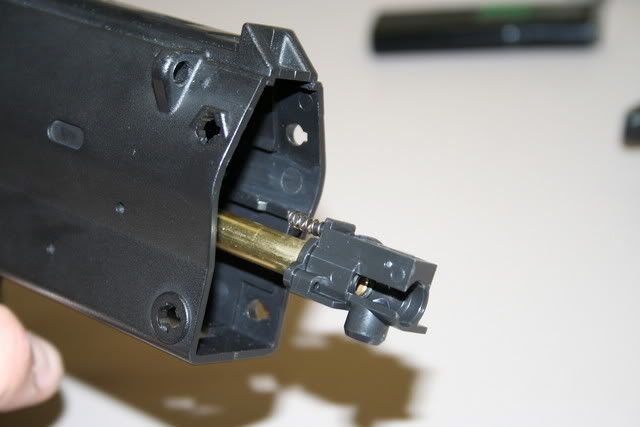

The inner barrel assembly can now be removed. It'll just slide out

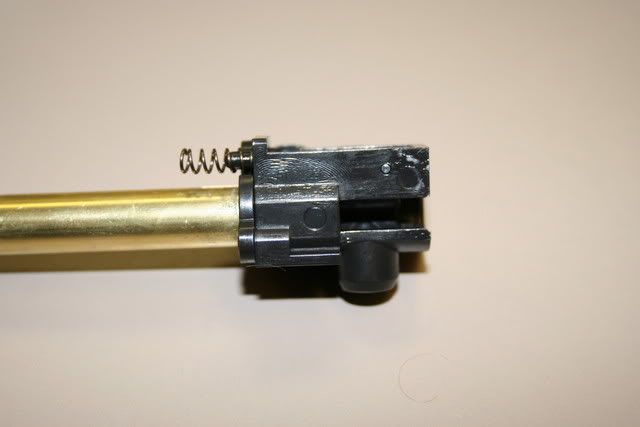

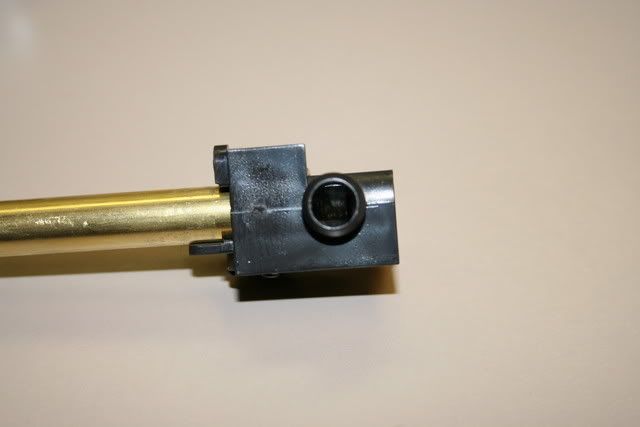

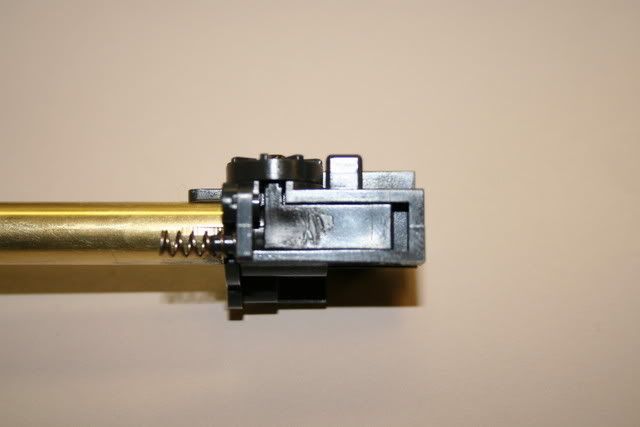

Here's the hop up unit as viewed from the left side


and the bottom

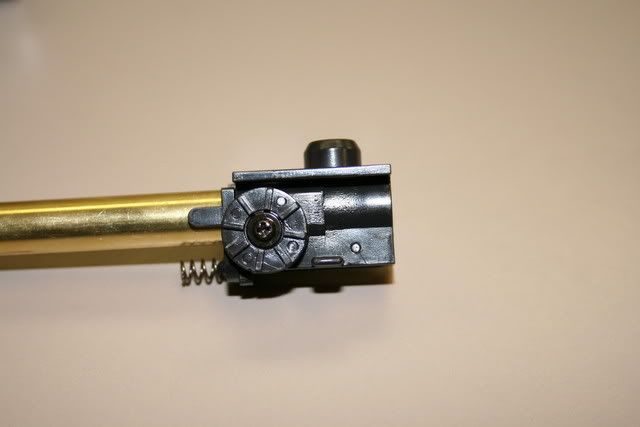

and the right


and the top

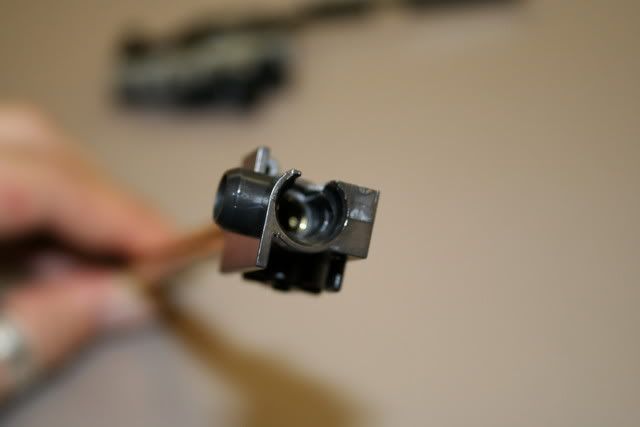

and the back


Now is a good time to remove the 'bolt'. Slide it back as far as you can

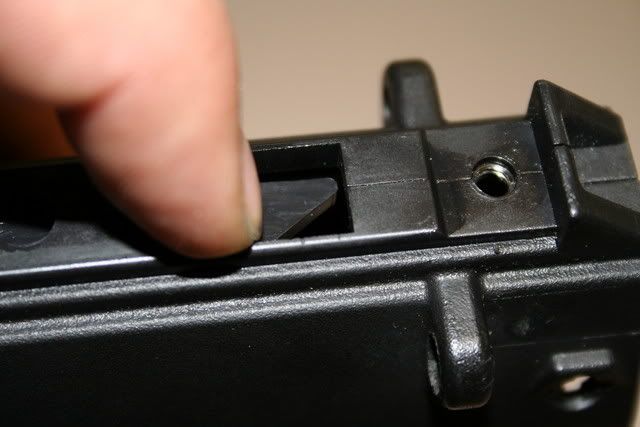

Press down on the part towards the top

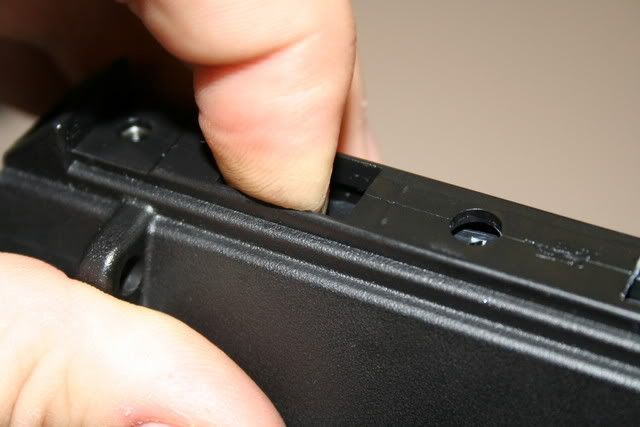

Here's another view. Pressing this down will allow it to come free of the track inside


It can then be pulled out the back

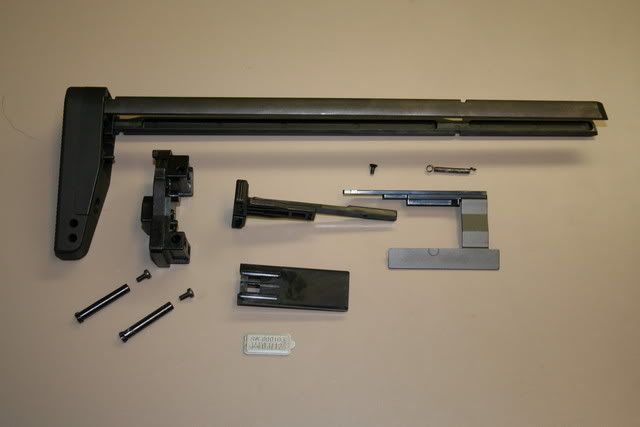

Here are all the rear set components

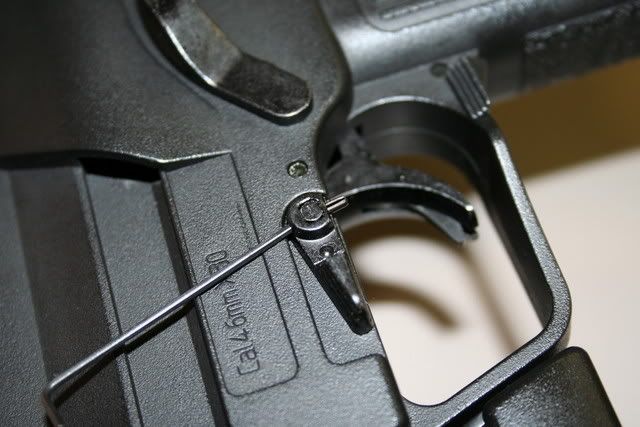

Now it's time to take out the selector lever, trigger, and bolt release so the switch assembly can be removed. Start by pushing out the bolt catch spring pin. Don't lose it! Pull the lever off and set is aside as well

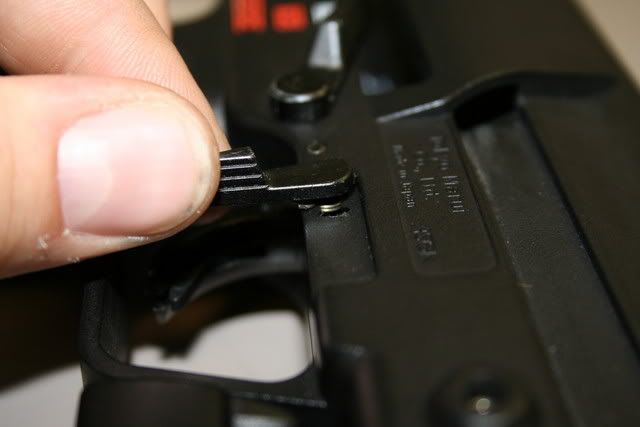

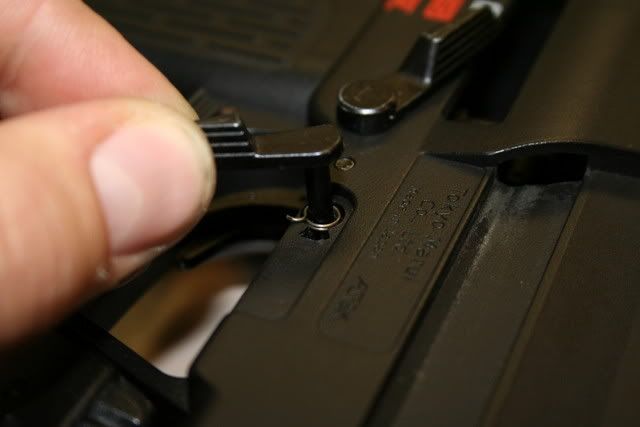

Now pull out the lever very carefully, pay attention to the spring's position


You can see the hooked part catches the post in the lever and the straight part fits into a notch in the hole

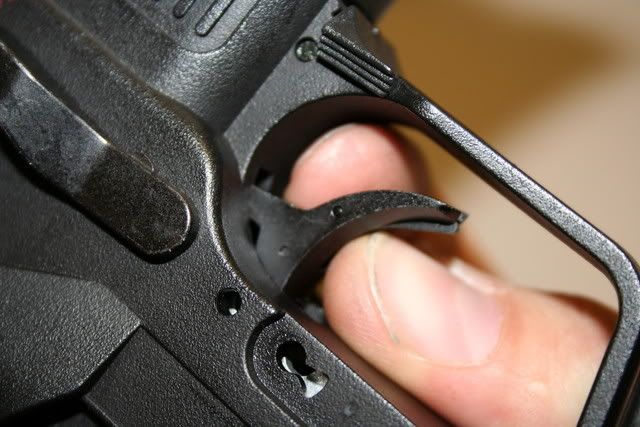

Now push out the trigger pin. Don't force it; it's designed to go one way. If it feels tough try pushing from the other side. You can see in this pic the side that should come out first has grooves in it


With the pin removed the trigger is free. I was worried that the trigger would be a nightmare to get in and out but it's fairly easy

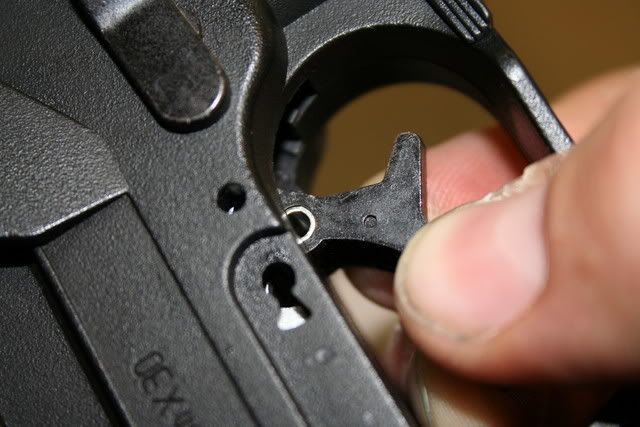

Just pull it forward and out. Pay attention to the spring as you do this so you have an idea how to get it back. It's basically the reverse of removing it

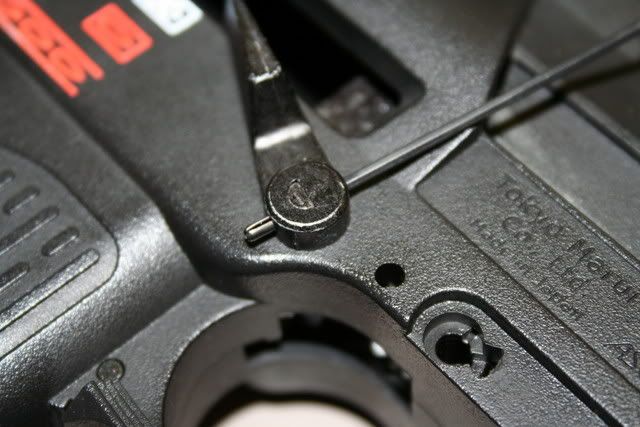

Next knock out the selector lever spring pin and remove the selector lever. Set it aside in a safe place along with the lever parts

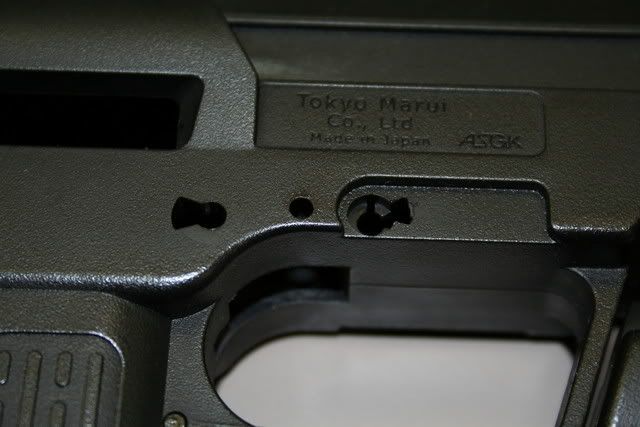

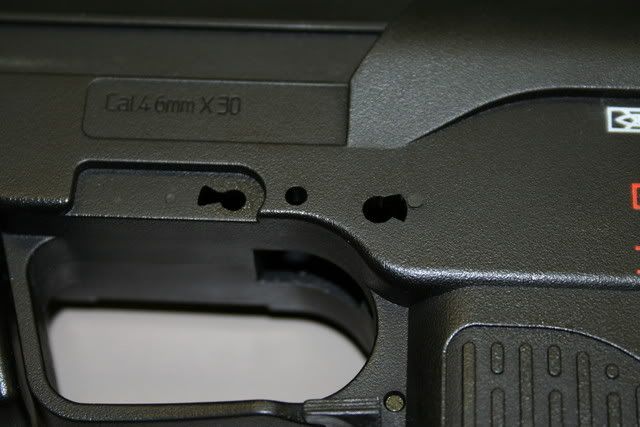

Here's the left side of the body with the bolt release, trigger, and selector components removed


And here's the right side

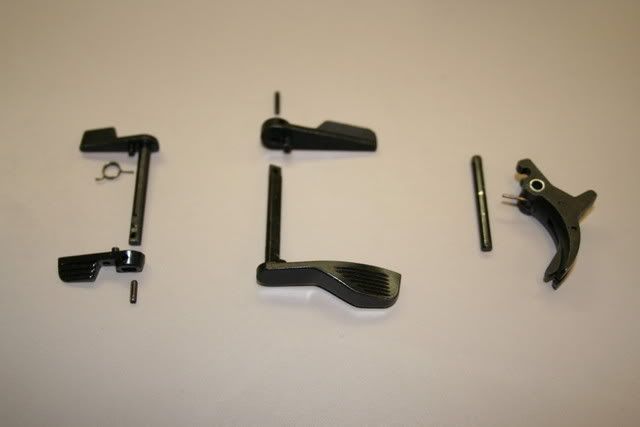

These are all the components that were just removed


Looking in the back, the switch assembly can be seen. Carefully remove it from the gun using tools to poke at it from the front if need be. It's held in position by rails and can be tricky to get back in place. Just take your time and poke at it through available holes. You'll get it

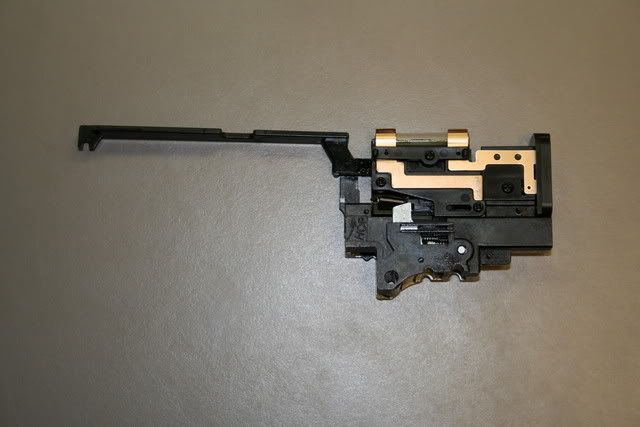

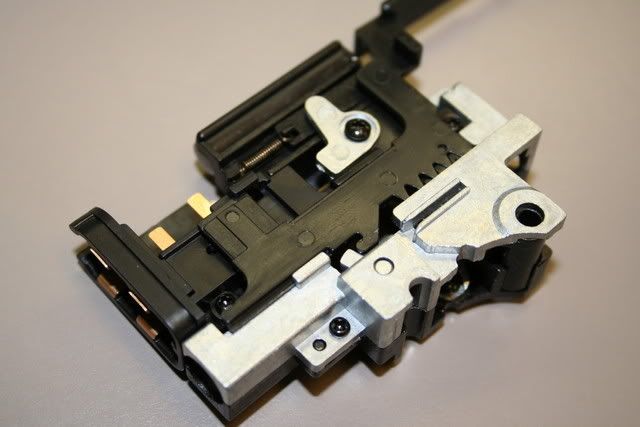

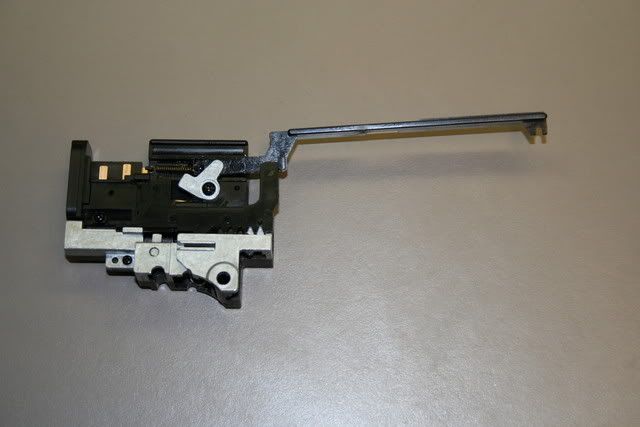

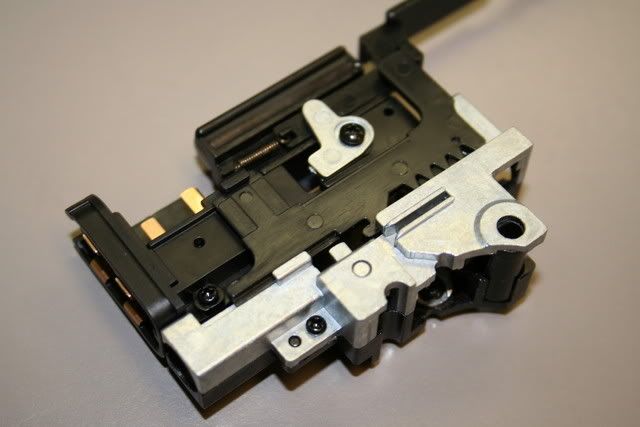

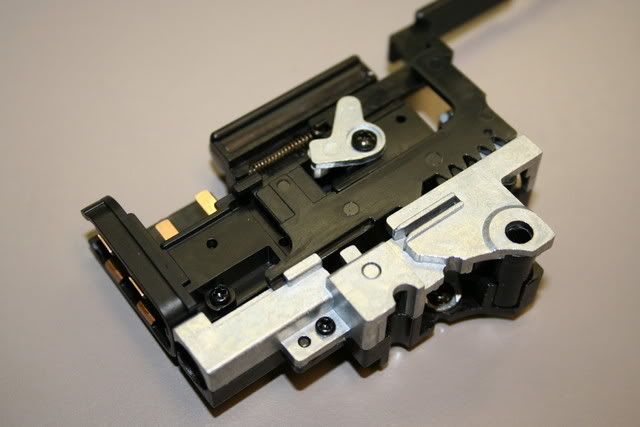

Here's the right side of the switch assembly


And the left

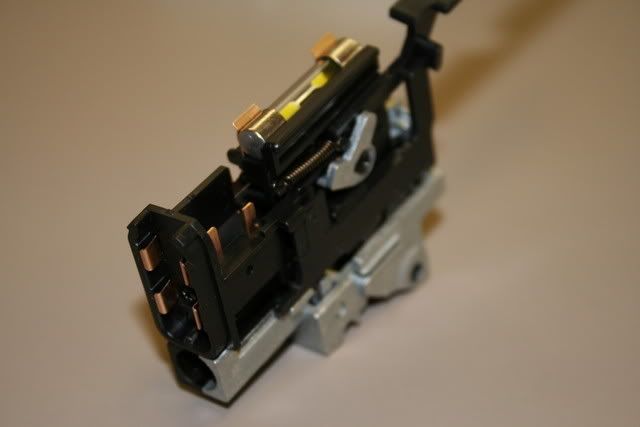

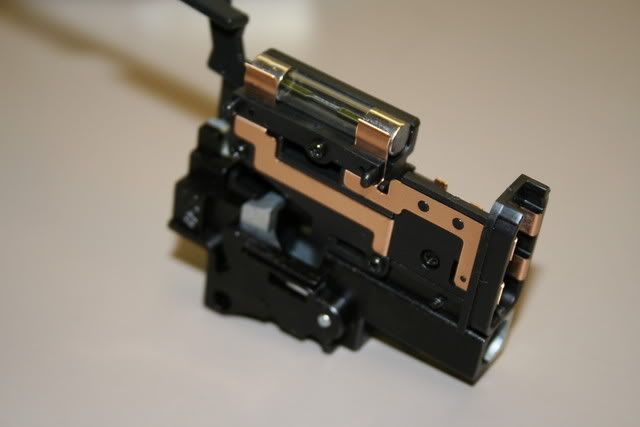

Another look. You can see the battery connector in the front

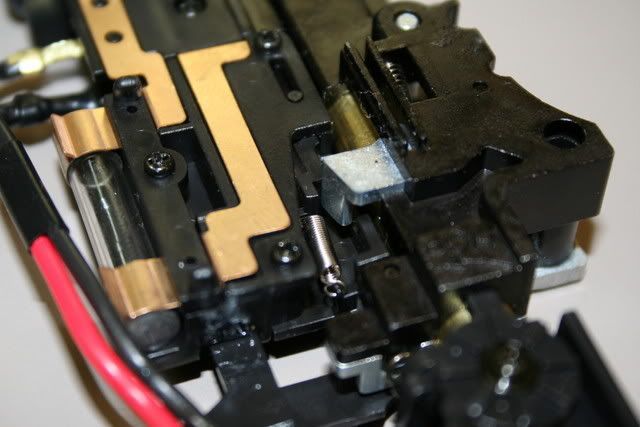

The fuse is rated at 10A if you were curious. The gearbox must not be very demanding

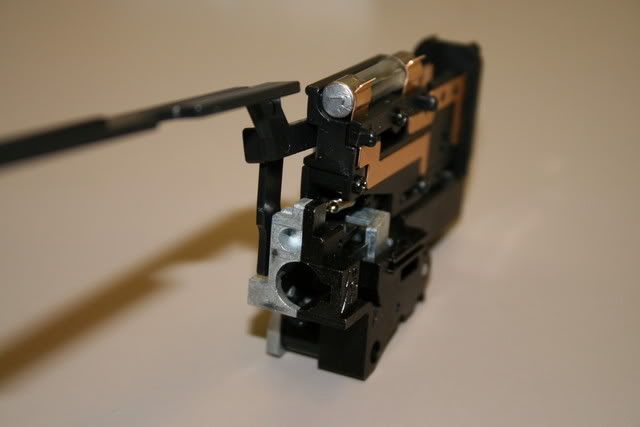

Here you can see where the barrel goes though the assembly

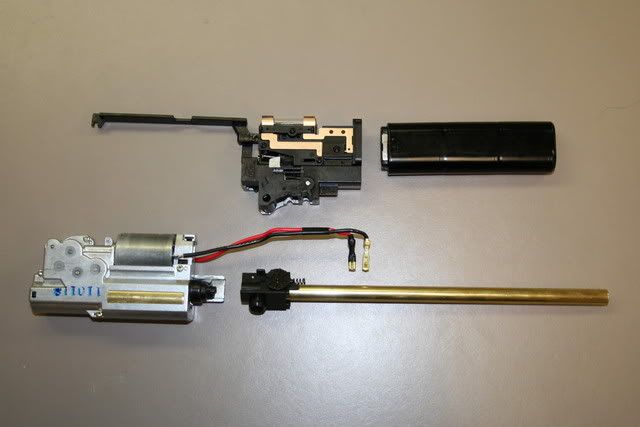

Here are all the major internal components

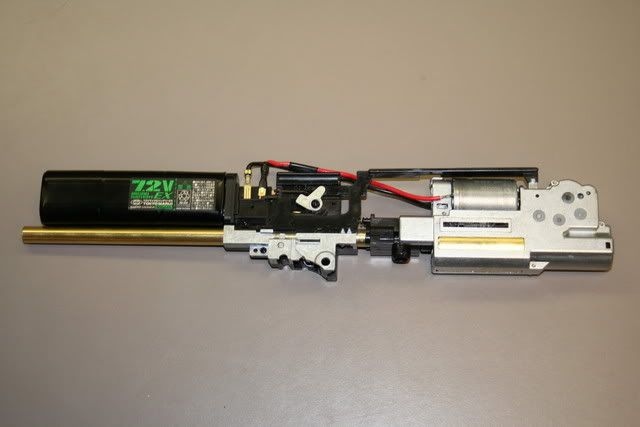

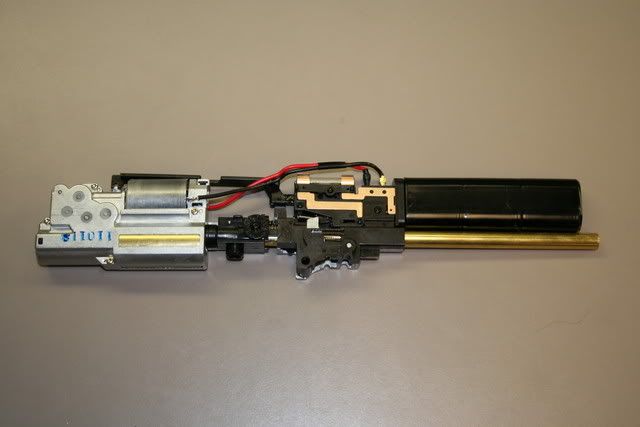

Here they are as they would be inside the gun when assembled as viewed from the left side


and the right

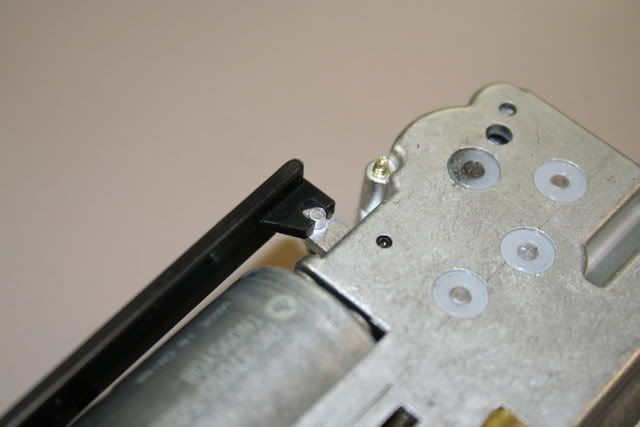

This is the connection between the semi-auto cutoff lever actuator arm and the actual semi-auto cutoff lever that was mentioned earlier

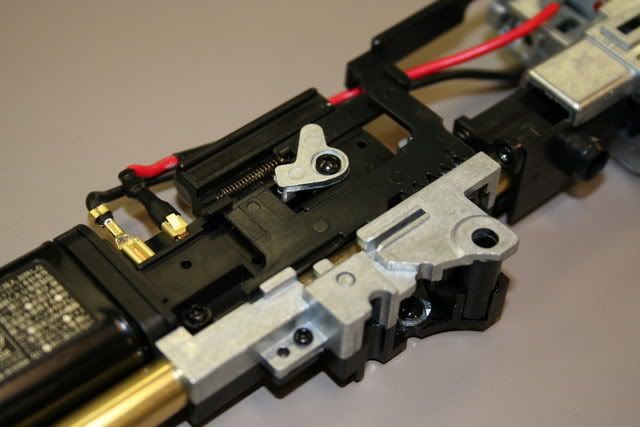

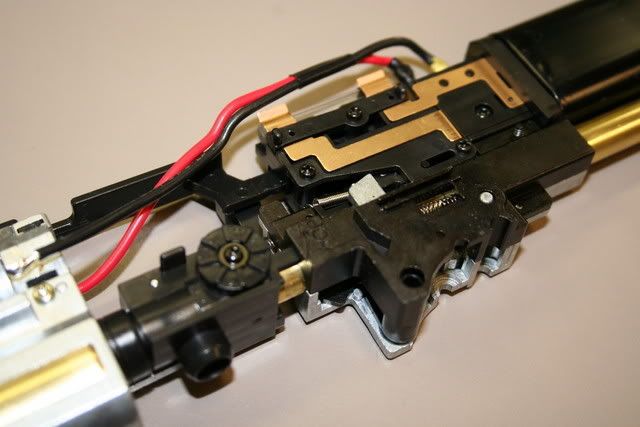

Close up on the left side of the switch assembly


And the here's the right side

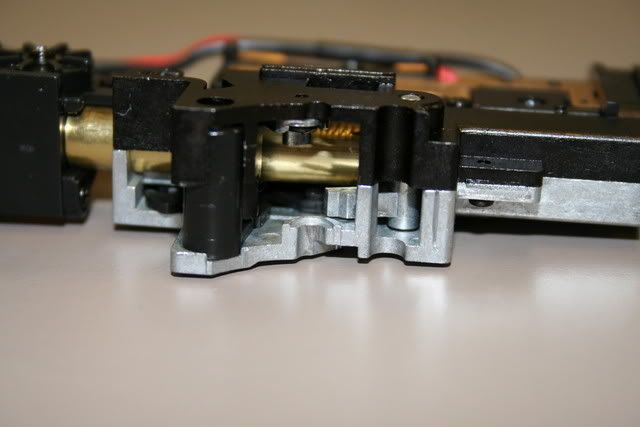

This is the bottom; you can see some of the trigger mechanism


Here you can see some more of the trigger mechanism


This is what the selector mechanism looks like on safe


This is semi. It's a small difference


On auto the selector plate pushes against the cutoff lever actuator arm which disengages the cutoff lever in the gearbox

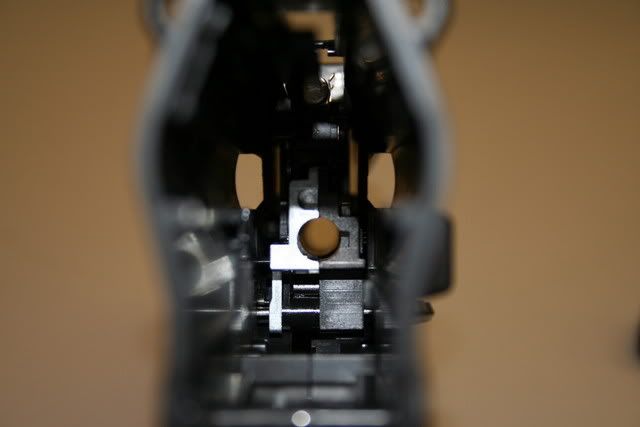

Here's a look deep inside the gutted body. There are still a few bits in there but there's no need to remove them


And now more shallow look

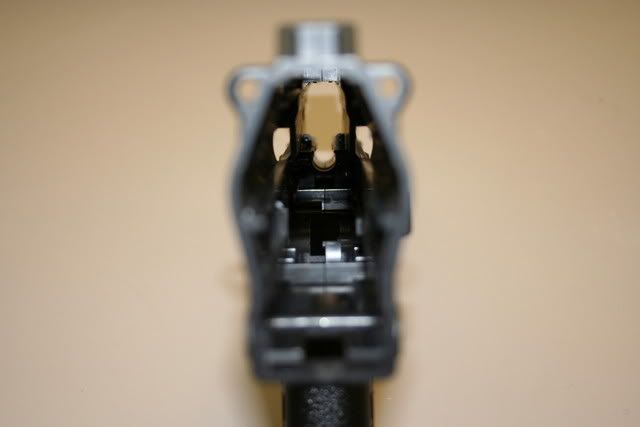

A view from the front


AGAIN, I REPEAT, THIS TAKEDOWN GUIDE IS NOT MINE!!! Do not give me any type of credit for this. This whole guide was taken off of ArniesAirsoft and was written by staticzero. I have nothing to do with the writing of this.
« Last Edit: June 25, 2007, 05:16:04 PM by Fallen One »
Logged

jeffairsoft

  • Guest
Re: MP7 Takedown Guide (Major 56k Killer, over 50 pics)
« Reply #1 on: June 26, 2007, 10:50:26 PM »

This is nice to know, but what is up with that gearbox? How can you fit all the parts in there?
Logged

smackie_the_frog21

  • Corporal
  • *
  • Reputation: +0/-0
  • Offline Offline
  • Posts: 87
    • View Profile
Re: MP7 Takedown Guide (Major 56k Killer, over 50 pics)
« Reply #2 on: June 26, 2007, 11:06:09 PM »

^Magic.

But seriously, that is pretty cool......I am always astounded at how many parts there are in a gearbox.
Logged
Some people tell me that "TM is better than CA because it's the internals that count, and that the nice externals of CA don't make up for its poor internals compared to those of a TM." I disagree. Good externals are much more valuble than good internals. Just look at my girlfriend.

Fallen One

  • Captain
  • **
  • Reputation: +0/-0
  • Offline Offline
  • Posts: 697
  • Victory has 1000 Fathers yet Defeat is an orphan
    • View Profile
    • San Antonio Airsoft
Re: MP7 Takedown Guide (Major 56k Killer, over 50 pics)
« Reply #3 on: June 26, 2007, 11:09:41 PM »

if yalls looks on my review in the pre-publication part of the forums, you can see the insides of the MP7's gearbox
Logged

Ender007

  • Sergeant
  • *
  • Reputation: +0/-0
  • Offline Offline
  • Posts: 461
    • View Profile
Re: MP7 Takedown Guide (Major 56k Killer, over 50 pics)
« Reply #4 on: June 26, 2007, 11:09:53 PM »

This is a nice guide. Going to have to remember to look at this if my MP7 ever breaks down.
